Key Features

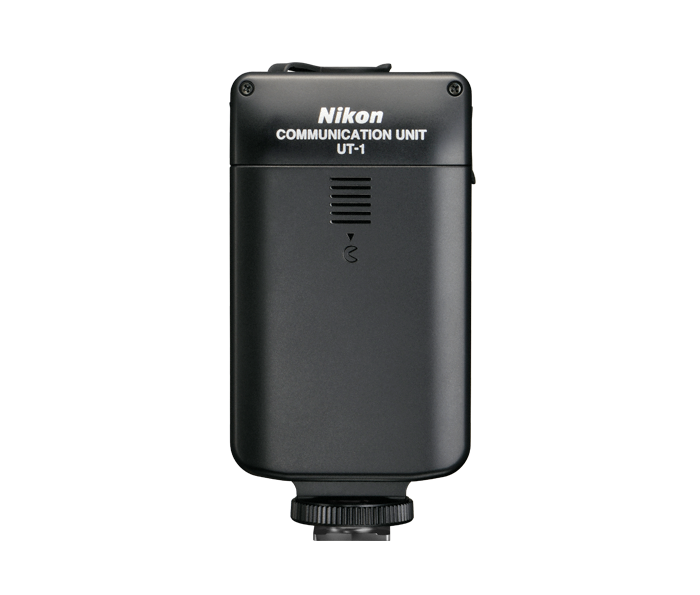

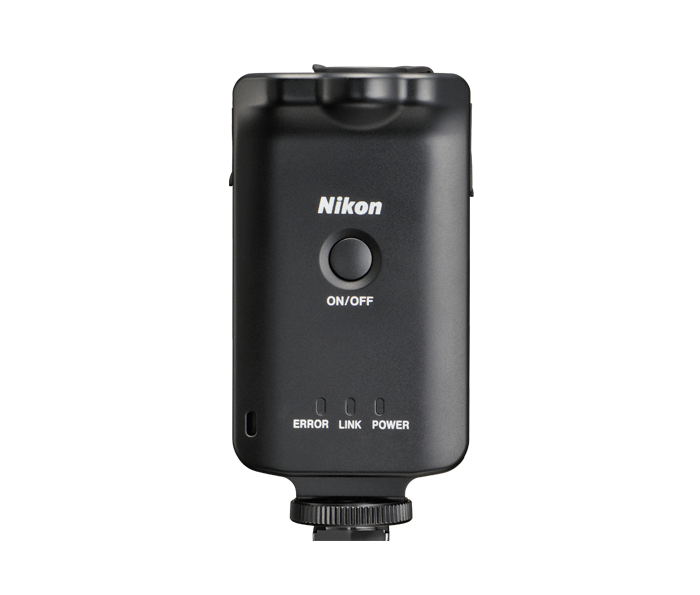

The UT-1 Communications Unit, when connected to the D800/D800E or D7000 D-SLRs allows the camera to connect via Ethernet to a computer or ftp server for downloading of images; in addition to controlling the camera remotely using Nikon’s Camera Control Pro 2 software.

The UT-1 can store up to nine host and server profiles.

The UT-1 attaches to the D-SLR via the accessory hot shoe, or the optional SK-7 bracket.

To use the UT-1 with a D7100, use the UC-E6 USB cable, which is provided with the camera, to connect the UT-1 with the D7100.

The UT-1 supports the following modes:

Transfer mode: transmit images and movies to a host (computer or ftp server) from the camera. In transfer mode, you have the option of turning on Auto Send, which automatically downloads images to the computer/ftp server immediately after they’re recorded to the camera’s memory card. The default setting is OFF; when used, you select images for downloading while in playback mode.

PC mode: Transfer images to a computer from the camera directly, instead of saving the images to the media card first, (however, movie files must be saved first to the media card, then downloaded to the computer), as well as control the camera from a computer using Nikon’s Camera Control Pro 2 software.

The UT-1 is powered by an EN-EL15 Li-ion rechargeable battery; It can also be powered by the optional EP-5B power connector and EH-5b or EH-5/EH-5a AC Adapter.

Specifications:

Standards: IEEE 802.3u (100 base-TX)/IEEE 802.3 (10 base-T)

Data rates: 10/100 Mbps with auto detect

Port: 100 base-TX/10 base-T (Auto-MDIX)

8 Questions | 13 Answers

Product Q&A

Ask your questions. Share your answers.



Clear Search


8 Questions | 13 Answers
All Questions
1 of 1
Sort by:
Has staff answer
Has expert answer
UT-1 Communication Unit

4 Answers

Will the UT-1 and WT-5A allow me to control my D800 and view pictures using my Ipad (like I can on D4)?

Oct 12, 2012 by
by
mzwphotography
Grafton MA
Has staff answer
Has expert answer
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0
1 year, 6 months ago
by
mzwphotography
Grafton MA
Location :
Grafton MA
Favorite Subject: Landscape
Nikon Family: 2-5 years
Role: Professional photographer
4 Answers

Answers

+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Answer:
Not directly with Nikon, but as I said in my previous answer, with "ShutterSnitch" it works just fine.
Nov 23, 2012 by
by
Strulf

+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Answer:
I apologize, my previous answer was incorrect. You cannot currently operate the UT-1 with the WT-5 in HTTP mode on a D800. The D800/WT-5/UT-1 combo only works in transfer and PC mode so smart devices are not currently supported.
Nov 17, 2012 by
by
NikonCatherine
New York

+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Answer:
You need the app "ShutterSnitch" though since HTTP is not supported with the UT-1. It's available in the App Store and pretty expensive for an app.
Nov 16, 2012 by
by
Strulf

0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1
Answer:
The UT-1 together with the WT-5A lets you create a wireless (Wi-Fi) connection with the D800.
With the WT-5A in HTTP mode you can use the web browser on your iPhone® and/or iPad®** to operate camera controls or begin Live View shooting, including starting and stopping HD video and more.
Oct 26, 2012 by
by
NikonCatherine
New York
1 person is following this questionFollow This Question
UT-1 Communication Unit

2 Answers

Connecting to wireless router

Aug 9, 2013 by
by
Anonymous
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
Can this product be connected to a wireless router, or does it have to be connected directly to a computer?
8 months ago
by
Anonymous
2 Answers

Answers

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
It can be use wirelessly if you connect the WT-5 to it but you will need to purchase both the UT-1 and the WT-5, OR Just buy the WT-4 which offers both wireless and ethernet capability.
Aug 10, 2013 by
by
ThatPhotoGuy

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
It connects via ethernet, cable connection, not via wifi.
Aug 10, 2013 by
by
KeithD
1 person is following this questionFollow This Question
Has staff answer
Has expert answer
UT-1 Communication Unit

2 Answers

Does the UT-1 need to be mounted in the camera flash shoe on the D7000 and D800?

Dec 10, 2012 by
by
Anonymous
Has staff answer
Has expert answer
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0
1 year, 4 months ago
by
Anonymous
2 Answers

Answers

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
The UT-1 can be mounted on the camera accessory shoe or on a tripod via the tripod socket. To mount the UT-1 on the camera when a flash unit or other accessory is mounted on the accessory shoe, use an optional SK-7 bracket.

Products related to my answer

Dec 13, 2012 by
by
NikonCatherine
New York

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
Yes, the UT-1 has to be mounted to the camera hot shoe.
Dec 11, 2012 by
by
NikonLaurence
New York
1 person is following this questionFollow This Question
Has staff answer
UT-1 Communication Unit

1 answer

I want to control and transfer files to the D800 or D4 with my iPad\iPhone

Sep 20, 2012 by
by
Snowy
Minneapolis, MN, USA
Has staff answer
+2points
2out of 2found this question helpful.
Was this helpful?helpful2unhelpful0
I have both a D800 and D4. I want to be able to control the D800 or D4 camera and view pictures on my iPhone\iPad.

First, is the only thing I need for the D800 is this UT-1?
I see the WT-5 connects to it, but why would you need it if you have the communicator?

Second, on the D4, doesn't the WT-5 already communicate with the iPhone? Why would you need the WT-5 communicator?

Products related to my question

1 year, 6 months ago
by
Snowy
Minneapolis, MN, USA
Location :
Minneapolis, MN, USA
Age: 45-54
Favorite Subject: Sports
Nikon Family: 2-5 years
Experience: 3-6 months
Role: Professional photographer
1 answer

Answers

+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Answer:
The UT-1 allows you to create a wired (Ethernet) connection with the D800.
The UT-1 together with the WT-5A lets you create a wireless (Wi-Fi) connection with the D800.

You do not need to use the UT-1 with the D4, as it has a built-in Ethernet port, just the WT-5A.
Oct 5, 2012 by
by
NikonStaff2
1 person is following this questionFollow This Question
Has staff answer
Has expert answer
UT-1 Communication Unit

1 answer

Will this devise be compatible for the D300 & D300s?

Sep 29, 2012 by
by
Anonymous
Has staff answer
Has expert answer
-1point
0out of 1found this question helpful.
Was this helpful?helpful0unhelpful1
1 year, 6 months ago
by
Anonymous
1 answer

Answers

+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0
Answer:
The UT-1 Communications unit is compatible with the D4, D800, D800e, and the D7000. It is not compatible with the D300 and the D300s.
Sep 30, 2012 by
by
NikonStaff4
Melville, NY
1 person is following this questionFollow This Question
Has staff answer
Has expert answer
UT-1 Communication Unit

1 answer

WT-5 + UT-1 on a D800 in HTTP mode/iOS

Nov 7, 2012 by
Has staff answer
Has expert answer
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0
Catherine said in another answer this would be possible. I don't think so. How is this supposed to work without a menu to setup HTTP (IP, password etc.)? The D800 is not prepared for the WT-5 hence has no menu for it. Neither the UT-1 or the WT-5 have displays, so no possibility to set it up there either.
HTTP with the WT-5 via the UT-1 on a D800 is most likely not possible. If it's still possible, I would like to know how to set it up.

Thanks!
1 year, 5 months ago
by
Strulf
Age: 25-34
Favorite Subject: Landscape
Nikon Family: 2-5 years
Experience: 1-3 months
Role: Professional photographer
1 answer

Answers

+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Answer:
Thanks, you are correct, you cannot currently operate the UT-1 with the WT-5 in HTTP mode on a D800. The D800/WT-5/UT-1 combo only works in transfer and PC mode so smart devices are not currently supported. I will amend my previous answer.
Nov 17, 2012 by
by
NikonCatherine
New York
1 person is following this questionFollow This Question
Has staff answer
Has expert answer
UT-1 Communication Unit

1 answer

Does the UT-1 come with the necessary cables to connect to a D800 and a D7000?

Dec 10, 2012 by
by
Anonymous
Has staff answer
Has expert answer
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
1 year, 4 months ago
by
Anonymous
1 answer

Answers

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
Yes, the UT-1 comes with the neccessary cables needed to connect to the D800, and D7000.
Dec 11, 2012 by
by
NikonLaurence
New York
1 person is following this questionFollow This Question
Has staff answer
Has expert answer
UT-1 Communication Unit

1 answer

I use a Nikon D800E & Imac -Can I use the UT-1 and WT5 ? How can I wirelessly upload the pictures as I take them? Will I need another gadget for Imac?

Jan 5, 2013 by
by
Russ
Cerritos, CA, USA
Has staff answer
Has expert answer
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
1 year, 3 months ago
by
Russ
Cerritos, CA, USA
Location :
Cerritos, CA, USA
Age: 45-54
Favorite Subject: Portrait
Nikon Family: 21+ years
Experience: 6-12 months
Role: Professional photographer
1 answer

Answers

0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Answer:
With the D800,WT-5 + UT-1, you can take pictures and wirelessly transfer them to a computer or FTP server, or wirelessly control the camera from a computer using optional Camera Control Pro 2 software.

The full setup instruction is in the UT-1 manual. PDF Link below.
http://www.nikonusa.com/pdf/manuals...

The wireless transmitter utility for mac and windows which is needed for the setup can be downloaded from the link below.
http://support.nikonusa.com/app/ans...
Jan 7, 2013 by
by
NikonLaurence
New York
1 person is following this questionFollow This Question
