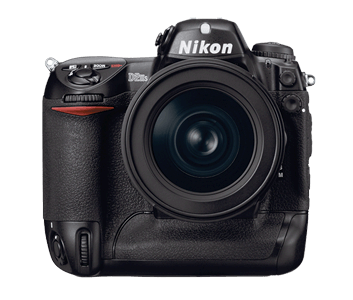

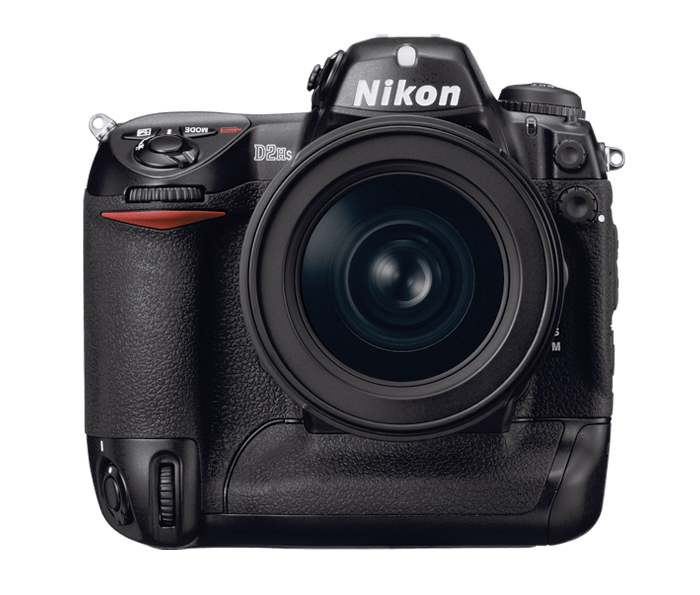

D2Hs from Nikon

Wireless capabilities, GPS connection, increased buffer capacity; precise, consistent auto white balance control; swift image writing to CF card.

Compare

Enlarge

Archived Product

Product Number: 25219

Visit Product Support for additional product information

Key Features

4.1 (effective) megapixels: Nikon original JFET imaging sensor LBCAST for high-resolution images (2,464 X 1,632 pixels) offers 4.1 effective megapixels. New ASIC reduces noise and greatly improves image quality.

Advanced 3D-Color Matrix Metering II: Advanced 3D color offers more refined exposure evaluation algorithms and a larger database for difficult-to-meter scenes.

GPS support: Connect with GPS devices that comply with the NMEA 0183 interface standard to record latitude, longitude, altitude and UTC data.

Improved AWB (Automatic White Balance): Precision and consistency are improved under lighting that has lower color temperatures with Speedlights.

Nikon Creative Lighting System: When used with the Nikon SB-800 and SB-600 Speedlights, the D2Hs maximizes the potential of the Nikon Creative Lighting System with high precision flash performance including i-TTL flash control and support for Nikon’s advanced wireless lighting, FP high-speed sync, modeling flash and more!

In the box (supplied accessories): Li-ion Battery EN-EL4, Quick Charger MH-21, Body Cap, Camera Strap AN-D2Hs, AV Cable EG-D2, USB Cable UC-E4, LCD Monitor Cover BM-3, Nikon View Software CD-ROM.

Increased buffer capacity: For continuous shooting, the increased buffer capacity allows 40 RAW (NEF) shots and up to 50 JPEG images for demanding action photographers.

Improved wireless capabilities: With added support for Nikon WT-2A Wireless Transmitter, you'll get improved transfer speeds up to 54mbs using 802.11g technology and easier connection settings with FTP + PTP/IP for wireless camera control using the latest Nikon Capture 4.2 software.

Multi-CAM 2000 AF sensor module: Equipped with 11 sensors, 9 that are cross-type, effectively covering the majority of the image area and providing razor-sharp focus and limitless possibilities. See the action, keep it all in focus. Refined AF system includes revisions-to-lens drive algorithms for improved focus precision, subject acquisition and subject tracking.

Supports the sYCC color space: Wider color gamut is available when printing JPEGs to sYCC compatible printers.

Other improvements: Faster memory increases speed of image writing to CF card and an improved battery life for even better performance.

Specifications

Lens Mount

Nikon F bayonet mount

Picture Angle

Effective picture angle 1.5x (Approx.) conversion factor (Nikon DX format)

Effective Pixels

4.1 million

Sensor Size

23.3mm x 15.5mm

Image Sensor Format

Image Area (pixels)

DX-format
(L) 2,464 x 1,632
(M) 1,840 x 1,224

File Format Still Images

JPEG: JPEG-Baseline Compliant; can be selected from Size Priority and Optimal Quality
TIFF (RGB)
Uncompressed 12-bit NEF (RAW)
WAV

Storage Media

CompactFlash© (CF) (Type I/II, compliant with UDMA)
MicroDrive©

Card Slot

1 CompactFlash© (CF) card

File System

Compliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.21 (Exchangeable Image File Format for Digital Still Cameras)

Viewfinder

Built-in Diopter adjustment (-3 to +1m⁻¹)
Eyepiece Shutter Provided
Optical-type Fixed Eye-Level Pentaprism

Viewfinder Frame Coverage

100 % Approx.

Viewfinder Magnification

0.86x Approx.

Viewfinder Eyepoint

19.9mm

Focusing Screen

Type B BriteView Clear Matte Mark II with AF Area Brackets (grid lines can be displayed)
Type B BrightView Clear Matte Mark III
Type E BrightView Clear Matte Mark III

Interchangeable Focusing Screens

Type B BrightView Clear Matte Mark III
Type E BrightView Clear Matte Mark III

Reflex Mirror

Instant-return type

Lens Aperture

Instant-return type with depth-of-field preview button

Depth-of-field Control

Yes

Lens Compatibility at a Glance***

AF-S or AF lenses fully compatible
Metering with AI lenses

Compatible Lenses

AF NIKKOR other than type G or D*2: All Functions Supported Except 3D Color Matrix Metering II
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
DX AF NIKKOR: All Functions Supported Except FX-format (36x24)/5:4 (30x24) Image Size
Non-CPU AI NIKKOR: Can be used in exposure modes A and M; Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster; Color Matrix Metering and Aperture Value Display Supported if User Provides Lens Data
Type G or D AF NIKKOR: All Functions Supported

Shutter type

Charge-coupled electronic and mechanical shutter; 30 to 1/16,000 sec. and Bulb

Fastest Shutter Speed

1/8000 sec.1/3
1/2
1

Slowest Shutter Speed

30 sec.1/3
1/2
1

Flash Sync Speed

Up to 1/250 sec.

Bulb Shutter Setting

Yes

Shutter Release Modes

Continuous low-speed [CL] mode; 1-7 frames per second
Continuous high-speed [CH] mode; 9 frames per second (9-11 frames per second with DX format)

Top Continuous Shooting Speed at full resolution

8 frames per second

Exposure Metering System

1,005-pixel RGB sensor 3D Color Matrix Metering II
Center-weighted
Spot
Variable Center-weighted

Exposure Meter Coupling

CPU
AI

Exposure Modes

Aperture-Priority Auto (A)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S)

Automatic Exposure Scene Modes

Exposure Compensation

±5 EV in increments of 1/3, 1/2 or 1 EV

Exposure Bracketing

2 to 9 frames in steps of 1/3, 1/2, 2/3 or 1 EV

Exposure Lock

Yes

Mirror Lock Up

Yes

ISO Sensitivity

ISO 200 - 1600
Hi-1 (ISO 3200)
Hi-2 (ISO 6400)

Lowest Standard ISO Sensitivity

2001/3
1/2
1

Highest Standard ISO Sensitivity

16001/3
1/2
1

Long Exposure Noise Reduction

Yes

High ISO Noise Reduction

Yes

Single-point AF Mode

Yes

Dynamic AF Mode

Dynamic-area AF (supports closest subject priority)

Auto-area AF Mode

Yes

Focus Lock

AE-L/AF-L button
Half press of shutter-release button (single-point AF in AF-S)

Focus Modes

Continuous-servo (C)
Single-servo AF (S)

Maximum Autofocus Areas/Points

X-Sync Speed

1/250

Top FP High Speed Sync

Up to 1/8000

Flash Control

SB-20, SB-16B, SB-15: Auto, Manual, Rear Curtain
SB-22s: Auto, Manual, Rear Curtain
SB-23: Manual, Rear Curtain
SB-24: Auto, Manual, Rear Curtain, Repeating Flash
SB-25: Auto, Manual, Rear Curtain, Repeating Flash
SB-26: Auto, Manual, Rear Curtain, Repeating Flash, Red Eye Reduction
SB-27: Non-TTL Auto, M, Rear Curtain Sync
SB-28: Auto, Manual, Rear Curtain, Repeating Flash, Red Eye Reduction
SB-28DX: D-TTL, Auto, Manual, Rear Curtain, Repeating Flash, Red Eye Reduction
SB-29s: Manual, Rear Curtain
SB-30: Auto, Manual, Rear Curtain
SB-50DX: D-TTL, Manual, Rear Curtain
SB-80DX: D-TTL, Auto Aperture(AA), Auto, Manual, Rear Curtain, Repeating Flash, Red Eye Reduction
SB-400: i-TTL, AA camera option, no Manual output option
SB-600: i-TTL, Manual, Red-Eye Reduction, AF Assist for multi area AF, Auto Zoom, Rear Curtain
SB-800: i-TTL, Auto Aperture (AA), Non-TTL Auto (A), GN, Manual, Rear Curtain, RPT, Red-Eye Reduction, FV Lock, AF Assist for multi-area AF, Zoom
SB-900: CLS cameras: i-TTL, AA, Non-TTL Auto, GN, M, RPT, AutoFP High Speed Sync (D3-series, D2-series, D700, D300s, D300, D200, D80 only), FV Lock, AF-Assist for mulit-area AF, Flash Color Info. Comm., Rear Curtain Sync, Red-Eye Reduction, Auto Zoom
SB-R1/SB-R200 triggered by camera's built in flash: No built in flash
SB-R1C1/SB-R200 triggered by SU-800: i-TTL, M, AutoFP High Speed Sync, Rear Curtain Sync, Slow Sync

Flash Sync Modes

Front-curtain sync (normal)
Rear-curtain sync
Red-eye reduction
Red-eye reduction with slow sync
Slow sync

Accessory Shoe

Yes

Nikon Creative Lighting System (CLS)

CLS Supported

Flash Sync Terminal

Yes

White Balance Bracketing

2 to 9 exposures

Monitor Size

2.5 in. diagonal

Monitor Resolution

232000 Dots

Monitor Type

Low temperature polysilicon TFT
Adjustable brightness

Playback Functions

Full Frame
Histogram Display
Slideshow
Thumbnail (4, 9 or 16 segments)
Zoom

Voice Memo Function

Yes

Interface

USB 2.0 (Hi-Speed)

Wi-Fi Functionality

WT-2A

GPS

GP-1 GPS unit

Total custom Settings

Recent Settings

Yes

Supported Languages

Chinese (Simplified and Traditional)
Dutch
English
Finnish
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish

Date, Time and Daylight Savings Time Settings

Yes

World Time Setting

Yes

Battery

Rechargeable

Battery / Batteries

EN-EL4 Lithium-ion Battery
EN-EL4a Lithium-ion Battery

AC Adapter

EH-6 AC Adapter

Battery Charger

MH-21 Quick Charger

Tripod Socket

1/4 inch 20

Approx. Dimensions

Width 6.2 in. (157.5mm)
Height 5.9 in. (149.5mm)
Depth 3.4 in. (85.5mm)

Approx. Weight

2.4 oz. (1070g)
camera body only

Supplied Software

Software Suite CD-ROM

Optional Accessories

EH-6 AC Adapter
Eyepiece Correction Lens DK-16C series
DK-16A Anti-fog Finder Eyepiece
Type E Focusing Screen
CompactFlash™ Card
Nikon Capture 4 software
WT-2/2A Wireless Transmitter
WA-E1 Extension Antenna

Supplied Accessories

Li-ion Battery EN-EL4
Quick Charger MH-21
Body Cap
Camera Strap AN-D2Hs
AV Cable EG-D2
USB Cable UC-E4
LCD Monitor Cover BM-3
Nikon View Software CD-ROM

*Supplied accessories may differ depending on country or area.

**Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer.
***Refer to the product manual or the Compatible Lenses Specification for additional details.
